- Turn the machine power OFF.
- Turn switch 5 ON for 10 seconds.
- Turn switch 5 OFF.
- Turn the machine power ON.

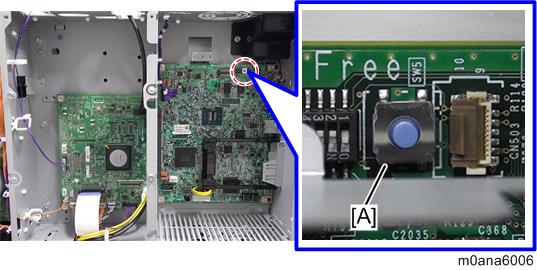

Location of Switch 5 [A] (Controller Board)
