- Open the right cover.

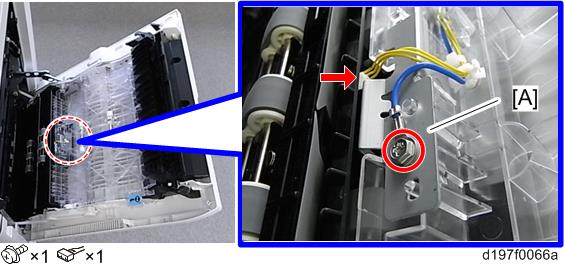

- Remove the duplex exit sensor bracket [A].

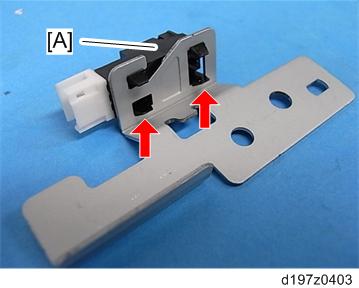

- Remove the duplex exit sensor [A] (hooks).
