1. Remove the left cover. (Left Cover)
  2. Remove the rear lower cover. (Rear Lower Cover)
  3. Remove the controller box cover. (Controller Box Cover)
  4. Release the clamps and the connector on the upper side of the controller box.

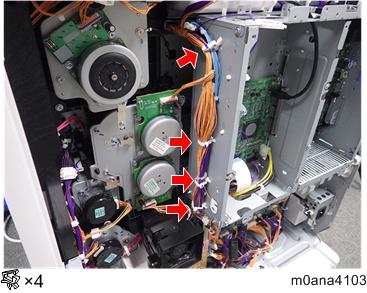

  5. Release the clamps on the side of the controller box.

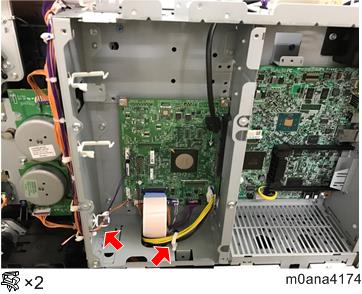

  6. Release the clamps in the controller box.

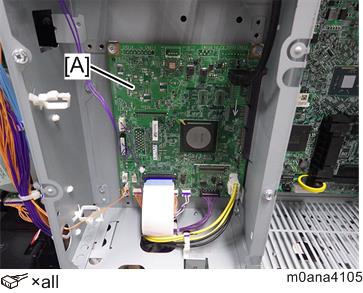

  7. Remove the connectors on the IPU [A].

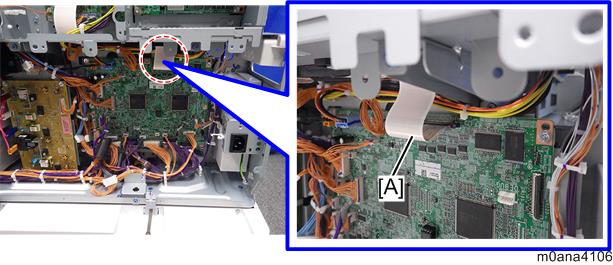

  8. Remove the FFC on the BCU [A].

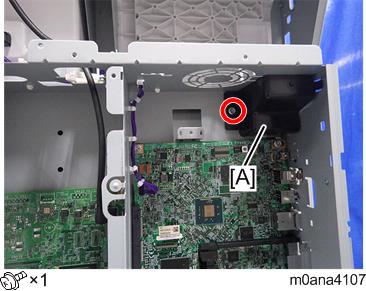

  9. Remove the cover [A].

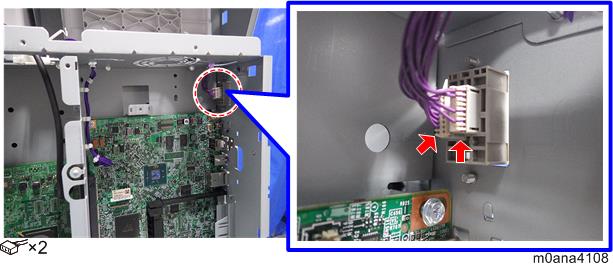

  10. Remove the connector.

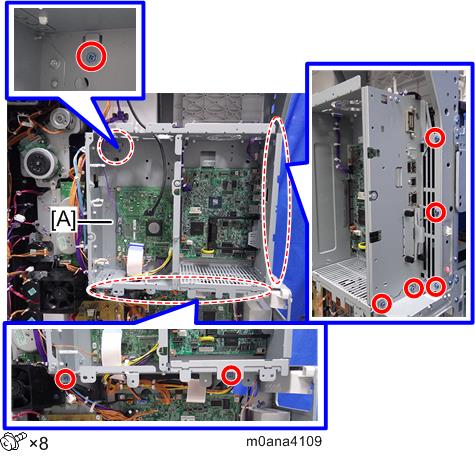

  11. Remove the controller box [A].
