- Remove the development bearing cooling fan. (Development Bearing Cooling Fan)

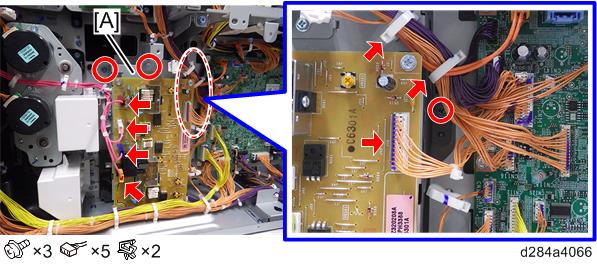

- Remove the HVPS [A] along with the bracket.

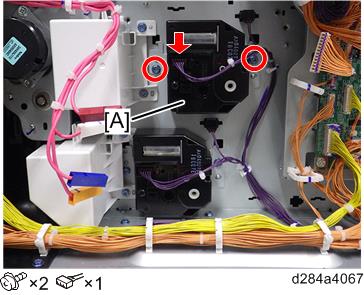

- Remove the 1st paper feed tray lift motor [A].

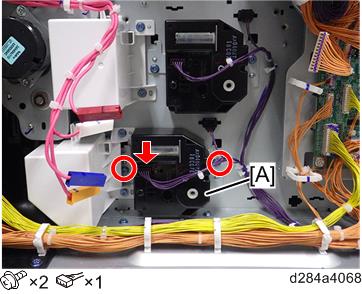

- Remove the 2nd paper feed tray lift motor [A].
