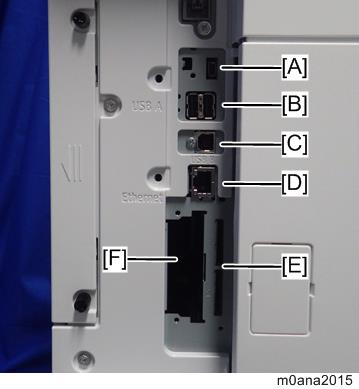

Slot

Option

[A]

USB mini

Usually the cover is attached. It is not used by the user.

[B]

USB port (type A)

Used for IC card authentication *1

[C]USB port (type B)

For printing via USB, a USB port on the Extended USB Board is used.

[D]

Ethernet port

Used for the print function (via network)

[E]

SD card slot

Refer to SD Card Slots.

[F]I/F slot

Used for one of the following internal options:

  • Extended USB Board Type M19 (D3BS-01)
  • IEEE 1284 Interface Board Type M19 (D3C0-17)
  • IEEE 802.11a/b/g/n Interface Unit Type M19 (D3BR-01)
  • RC-GATE

*1 There is no difference between the left and right USB ports.
