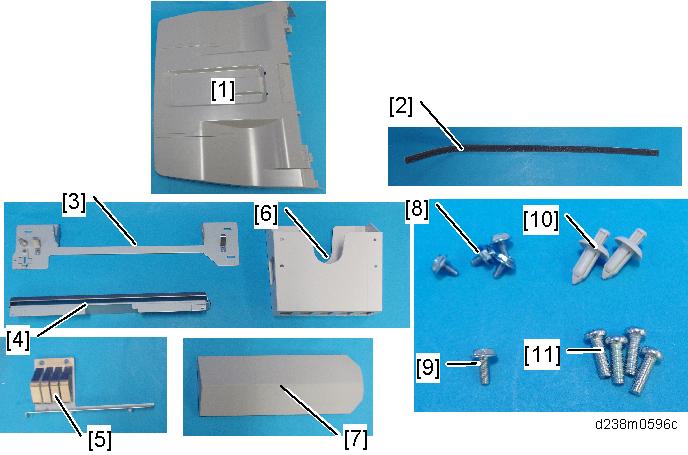

No. | Description | Q’ty | Remarks |
---|
1 | Shift Tray | 1 | |
2 | Cushion | 1 | |
3 | Joint Bracket | 1 | |
4 | Relay Guide Plate | 1 | |
5 | Ground Plate | 1 | |
6 | Tray Holder | 1 | |
7 | Proof Support Tray | 1 | |
8 | Screws (M3x6) | 4 | |
9 | Screws (M3x8) | 1 | |
10 | Round Rivets | 2 | |
11 | Screws (M4x12) | 4 | |
