- Remove the top right cover. (Top Right Cover)
- Turn over the operation panel. (Operation Panel Unit)

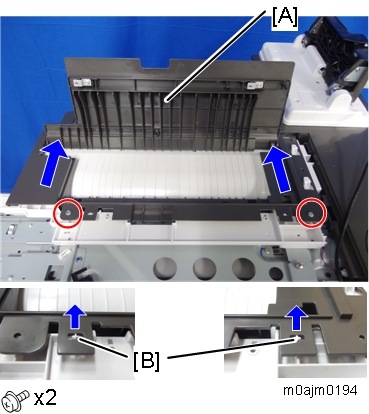

- Remove the inverter guide cover [A].
Lift the exterior cover from the screw bosses [B], and then slide the inverter module in the direction of the blue arrow and remove it.

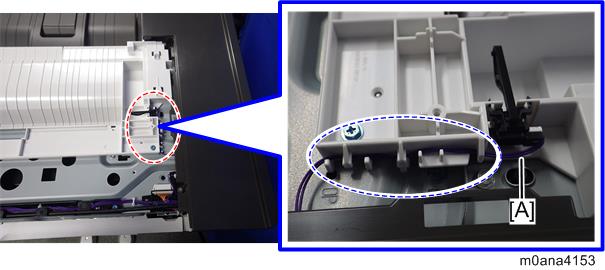

- Release the harness [A] from the harness guide.

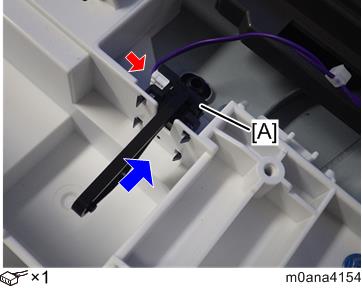

- Remove the inverter guide cover sensor [A].
