- Remove the fusing unit. (Fusing Unit)
- Remove the fusing thermopile unit [A].

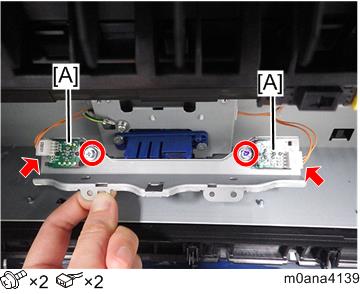

- Remove the fusing thermopiles [A].
