- Remove the fusing lower cover. (Fusing Lower Cover)

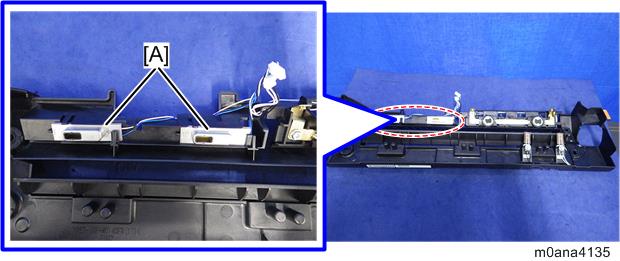

- Remove the fusing roller temperature sensors [A].
