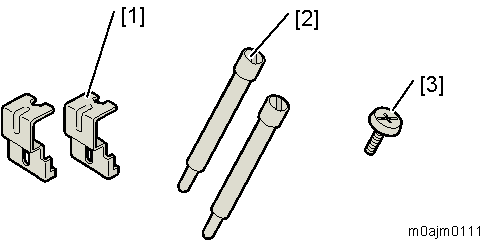

No. | Description | Q’ty | Remarks |
|---|
1 | Securing Bracket | 2 | |
2 | Long Screws (M4 × 10) | 2 | |
3 | Coin Screw (M4 × 10) | 1 | |
