- Disconnect the USB connector and the harness on the operation panel. (Operation Panel Unit)
- Remove the top right cover. (Top Right Cover)
- Remove the top rear cover. (Top Rear Cover)
- Remove the controller box cover. (Controller Box Cover)

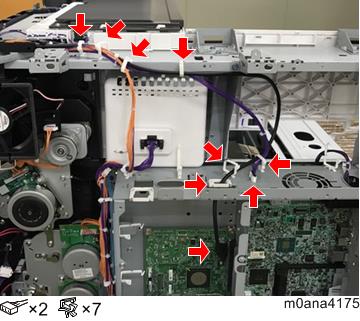

- Disconnect the USB cable on the IPU and release the harness.

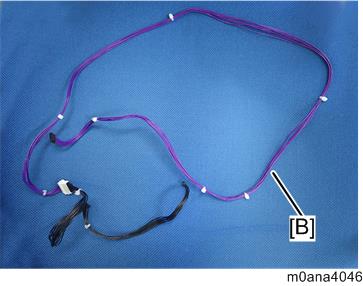

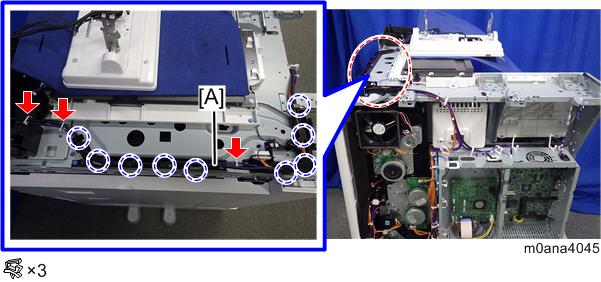

- Remove the USB cable [A] and the harness [B] from the harness guide.

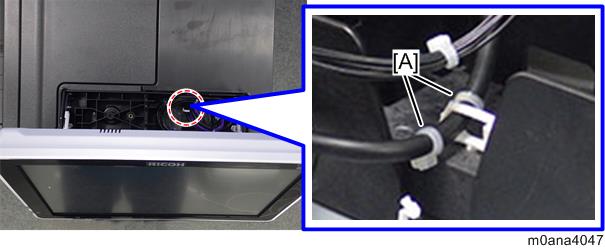

- When connecting the USB cable, position the clamp between the two cable ties [A].
