• When installing this option, turn OFF the main power and unplug the power cord from the wall socket. If installing without turning OFF the main power, an electric shock or a malfunction may occur.

When installing the Attention Light AL3000 and the Mail Box CS3010 at the same time, install the attention light after step 1 of Transferring the Operation Panel in the mail box installation procedure.

  1. Unpack the attention light and the accessories (fixing screws, etc.) provided with this unit.

  2. Remove the small cover [A].

  3. Open the right cover then remove the screw.

  4. Release the hooks on the inside of the upper front cover [A] by pulling the cover's sides outward, and remove the upper front cover. Remove the upper front cover [A].

  5. Remove the right upper cover [A] as shown by the arrow.

  6. Remove the cover [A].

  7. Remove the top right cover [A].



  8. Remove the rear left cover [A] (coin screw x2).

  9. Remove the rear cover [A].

    Each part enclosed by a red dotted circle has a tab. Be careful not to damage it when attaching and detaching.


  10. Using the flat-headed screwdriver, remove the cover [A].
  11. Remove the top rear cover [A].

  12. Remove the controller box cover [A].
     Red Circle: Remove, Blue Circle: Loosen

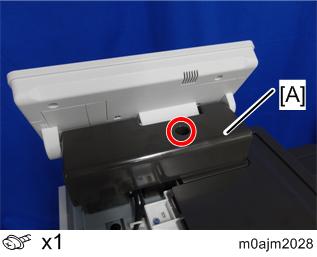

  13.  Remove the operation panel upper cover [A].

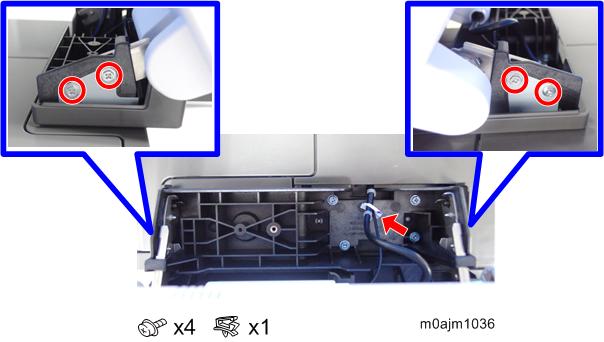

  14.  Remove the screws and clamps securing the operation panel to the hinge.

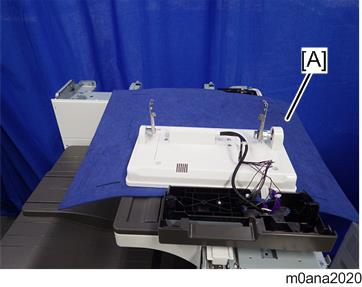

  15.  Spread out the service mat [A] on top of the machine, detach the operation panel from the hinge, and then place the operation panel face down on the mat.

    Be sure the service mat remains spread out underneath the operation panel to protect the display.

  16.  Remove the rear center cover [A].

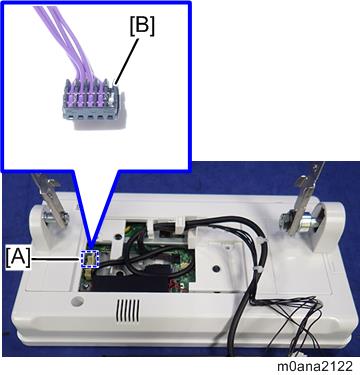

  17.  Connect the 5-pin connector [B] to the operation panel connector [A].

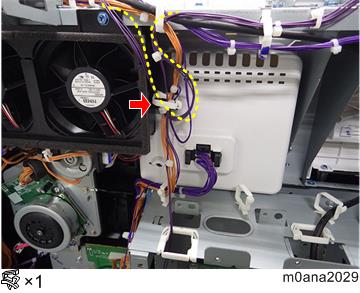

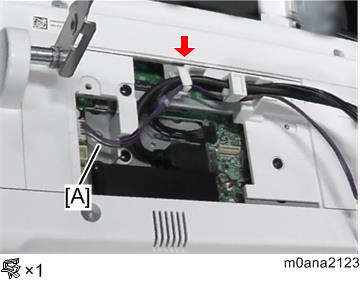

  18.  Secure the harness with the clamp and route the harness [A] along the USB cable.

  19.  Reattach the rear center cover of the operation panel, and then reattach the operation panel.

  20.  Reattach the operation panel upper cover.

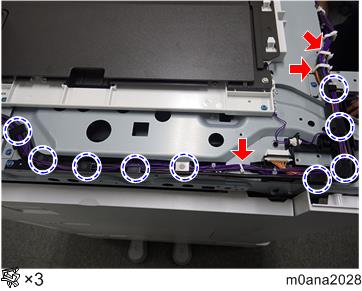

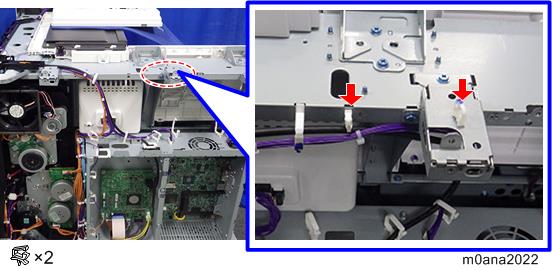

  21.  Attach the clamps (provided with this unit) on the rear side.

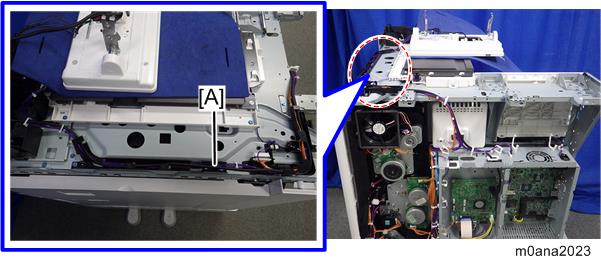

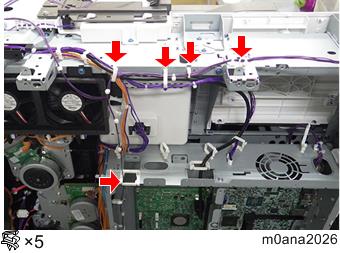

  22. Route the harness on the rear side.

    EU/AA:

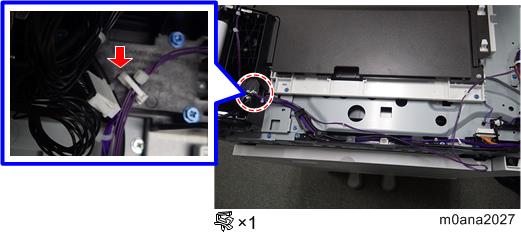

  23. Fix the harness on the front side.

  24. Release the USB cable [A] from the cable guide.

  25. Route the harness as shown below, then reattach the USB cable.

    Attach the surplus length of the harness as shown below. (EU/AA only)

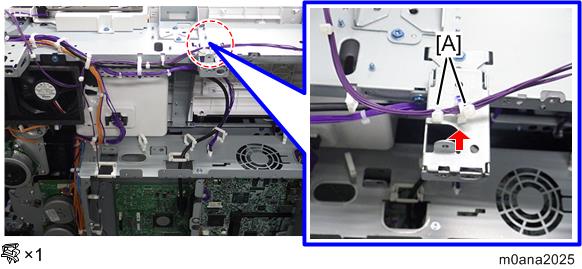

  26. Position the clamp between the two cable ties [A]. (This is in order to prevent the harness from coming off.)

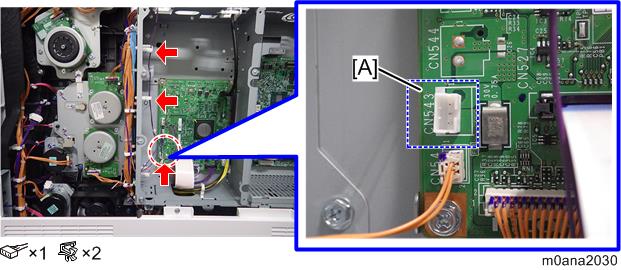

  27. Connect the white 3-pin connector to CN543 [A] on the IPU.

  28. Reattach the top rear cover.

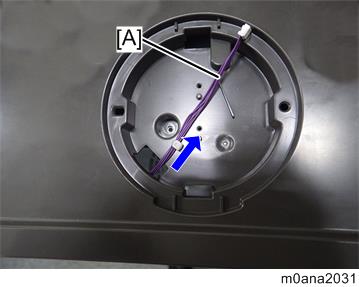

  29. Pull out the white 5-pin connector of the harness [A] routed in steps 22-25.

  30. Reattach the covers in the following order: controller box cover, rear left cover, and rear cover.

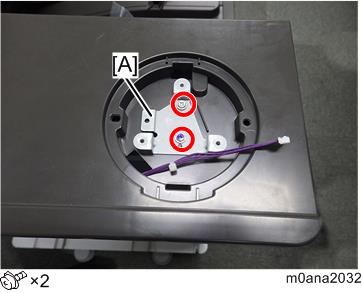

  31.  Attach the bracket [A] (M3x8).

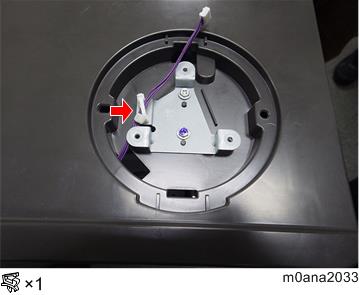

  32. Attach the large clamp (provided with this unit) on the bracket.

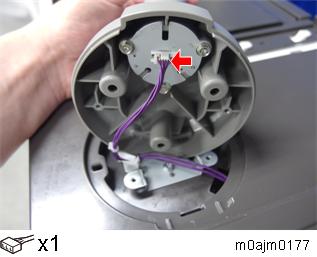

  33.  Connect the harness to the connector of the attention light.

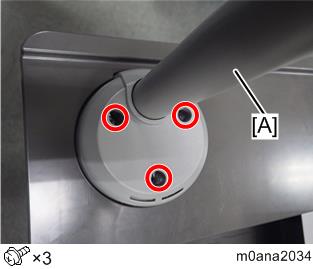

  34.  Attach the attention light [A] on the main machine (M3x8 round-head screws).

    Make sure the harness does not get caught when attaching the attention light.

  35.  Reattach the covers in the following order: top right cover, upper front cover, and small cover.
