- Remove the fusing lower cover. (Fusing Lower Cover)

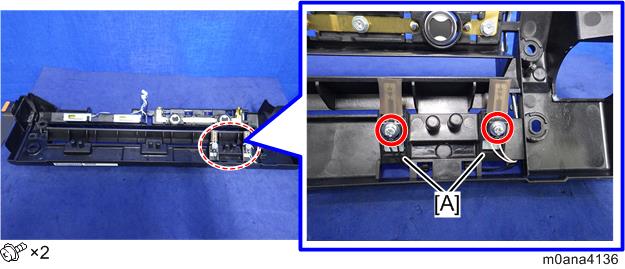

- Remove the screws of the pressure roller temperature sensors [A].

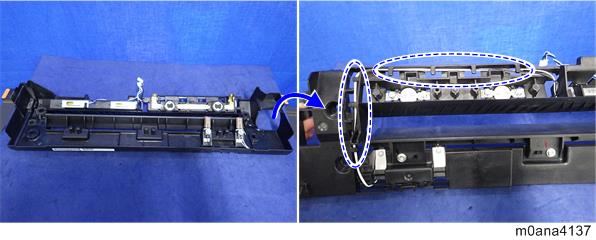

- Remove the pressure roller temperature sensors from the harness guide.
