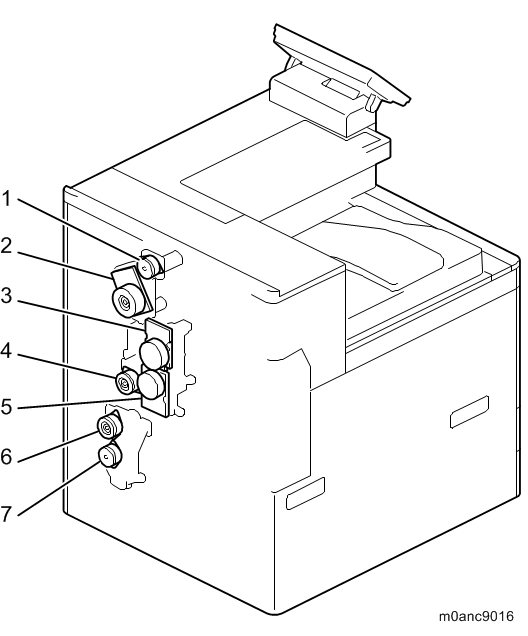

No. | Description | No. | Description |
|---|
1 | Paper exit motor | 5 | Development motor |
2 | Fusing motor | 6 | Vertical transport motor |
3 | Drum/Waste toner motor | 7 | Paper feed motor |
4 | Registration motor | | |
