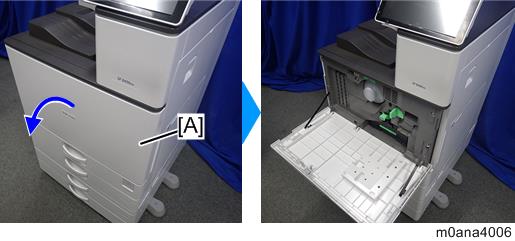

- Open the front cover [A].

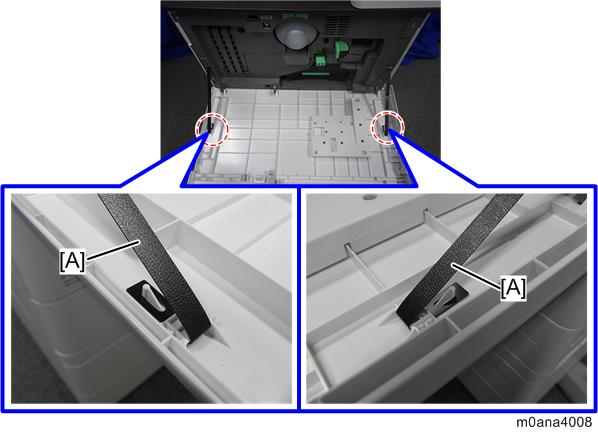

- Unhook the belt tip and detach it [A].

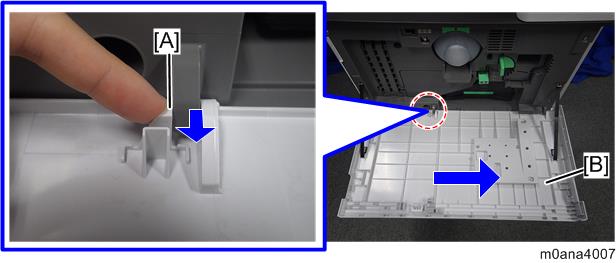

- Pressing down the stopper [A], slide the front cover [B] to the right and detach it.
