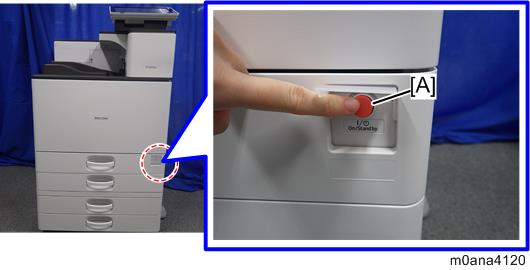

- Press the main power switch [A] on the machine.

- The shutdown message appears. After the shutdown process, the main power is turned off automatically.
The operation panel and the main power indicator are turned off when the machine completes the shutdown.

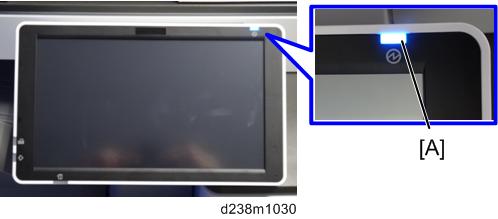

- Even after the shutdown message disappears, do not disconnect the power cord while the main power indicator [A] is flashing to indicate that the machine is still shutting down.


- Before removing and adjusting electrical boards, do the following procedure. Otherwise, the board can be damaged by the residual charge inside the machine and must be replaced.
- Take out the power cord after shutdown.
- Press the power switch for a second to remove the residual charge inside the machine.
