1. Remove the rear cover. (Rear Cover)

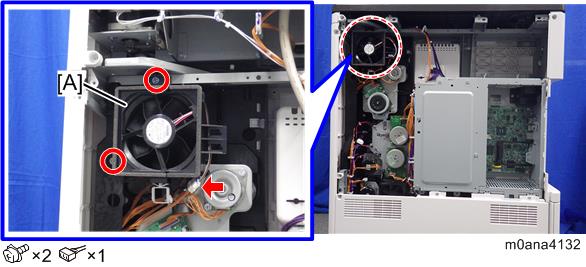

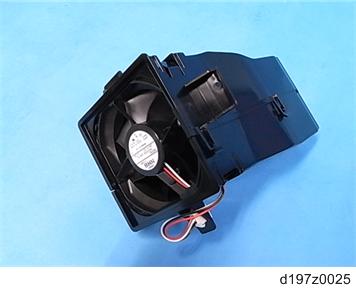

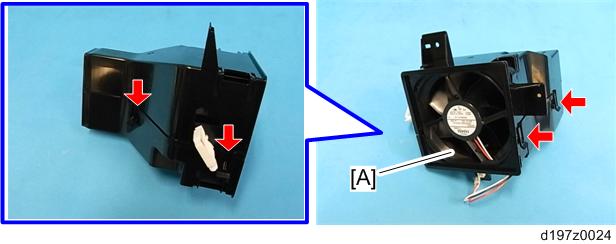

  2. Remove the fusing exhaust heat fan [A] with duct.

    EU/AA:

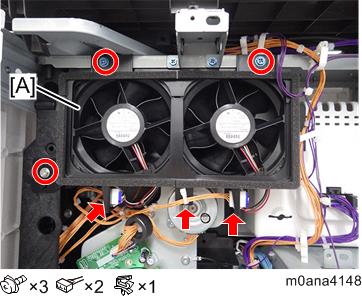

  3. Remove the fusing exhaust heat fan [A]. (×4)

  • Pay attention to the direction of the fan when installing. The decal pasted on the fan must face the outside.
