- Remove the waste toner bottle. (Waste Toner Bottle)

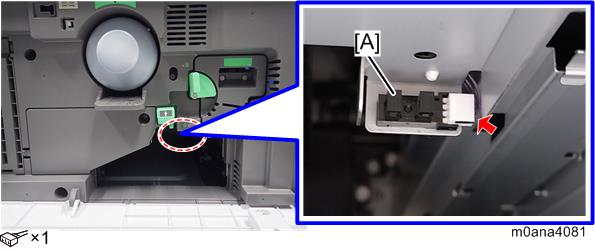

- Remove the toner collection full sensor [A].
