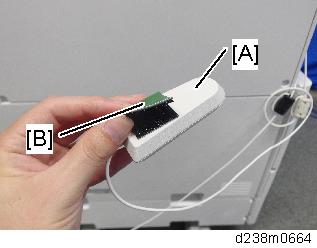

Attach the velcro fastener [B] (provided with this unit) on the antenna [A].
- Attach the velcro fastener to the bottom half of the case (where the cable is located).
- You may attach the velcro fastener on either side of the case.

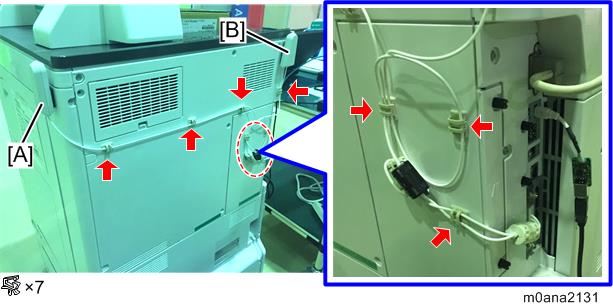

Peel the backing paper off the velcro fastener, and attach the antennas [A] and [B] as shown.
When attaching 2 antennas, attach them at least 12 cm or more away from each other.
- Take care to loop it around so that it does not interfere with other options or I/F cables.
- Turn ON the main power.
- Print out the "Configuration Page", and then check if this option is correctly recognized.
- User Tools > Machine Features > Printer Features > List/Test Page > Configuration Page
