1. Turn OFF the main power.
  2. Insert the SD card into slot 2 (lower), then turn ON the main power.
  3. Enter SP mode.
  4. Select the "Printer SP".

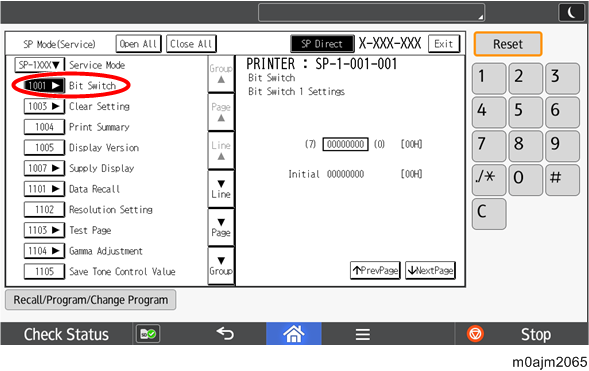

  5. Select SP-1001 "Bit Switch".

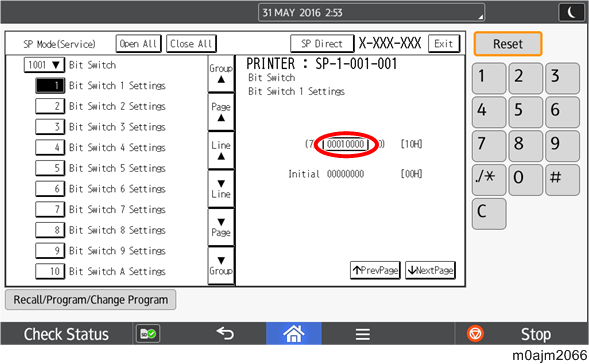

  6. Select "Bit Switch 1 Settings" and use the numeric keypad to turn bit 4 ON and then press the "#" to register the change. The result should look like: 00010000. By doing this, Card Save option will appear in the "List/Test Print" menu.
  7. Press "Exit" to exit SP Mode.
  8. Press the "User Tools" icon > "Machine Features".

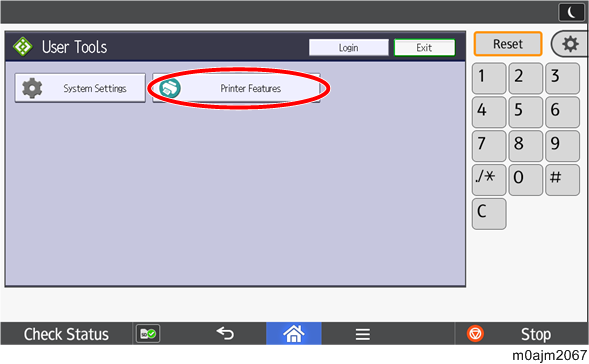

  9. Select "Printer Features".

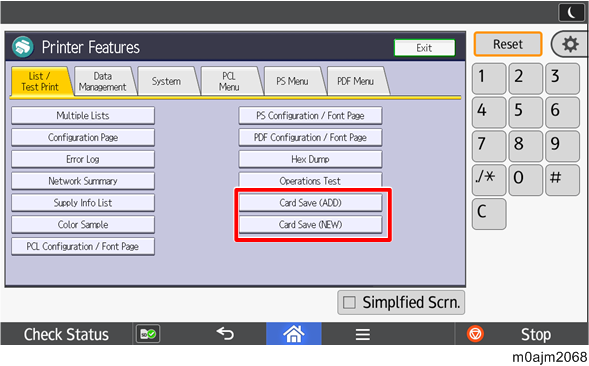

  10. Card Save (Add) and Card Save (New) should be displayed on the screen. Select Card Save (Add) or Card Save (New).

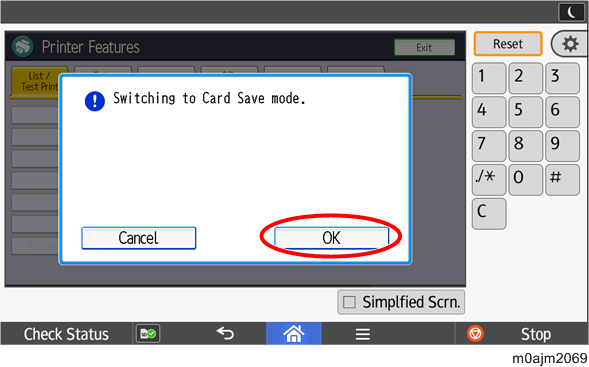

  11. Press "OK" and then return to Home screen.

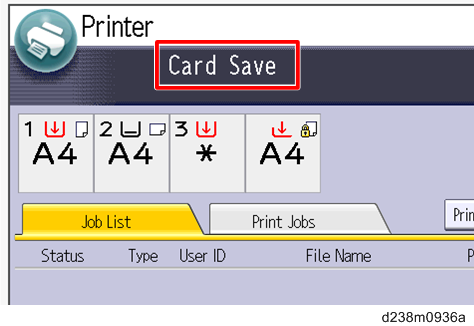

  12. Press the "Printer (Classic)" icon.
  13. "Hex Dump Mode" is be displayed in the top left of the display panel.
  14. Send a job to the printer. The Communicating light should start blinking.
  15. As soon as the printer receives the data, it will be stored on the SD card automatically with no print output.
    Nothing is displayed on the screen, indicating that a Card Save operation was successful.

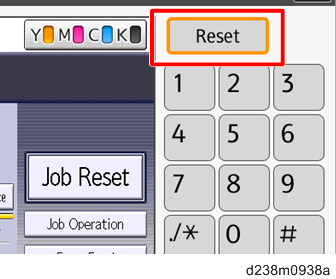

  16. Press "Reset" to exit Card Save mode.
  17. Change the Bit Switch Settings back to the default 00000000, then press the "#" in the numeric keypad to register the changes.
  18. Remove the SD card after the main power switch is turned OFF.
