1. Remove the fusing unit. (Fusing Unit)

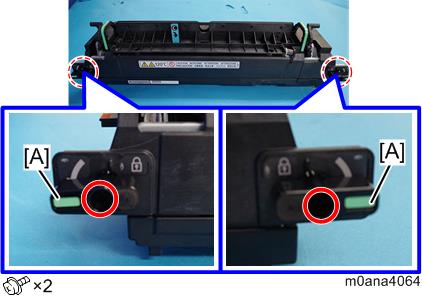

  2. Remove the levers [A].

    Use a screwdriver with a shaft diameter of 5 mm.

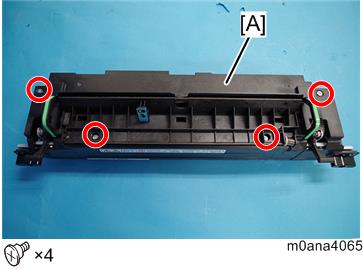

  3. Remove the fusing upper cover [A].

    • You must route the harnesses for the pressure roller temperature sensor and the fusing roller temperature sensor correctly when reassembling the fusing unit. See the notes when reassembling the fusing unit. (Notes When Reassembling the Fusing Unit)
