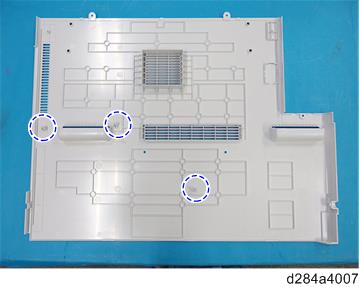

Each part enclosed by a blue circle has a tab. Be careful not to damage it when attaching and detaching.

  1. Remove the left rear cover. (Left Rear Cover)
  2. Remove the controller cover. (Controller Cover)
  3. Remove the rear lower gap cover. (Rear Lower Gap Cover)
  4. Pull out the 1st and 2nd paper feed trays.

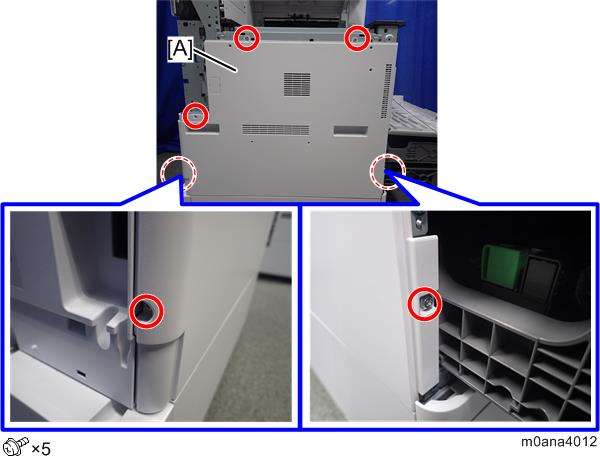

  5. Remove the left cover [A].

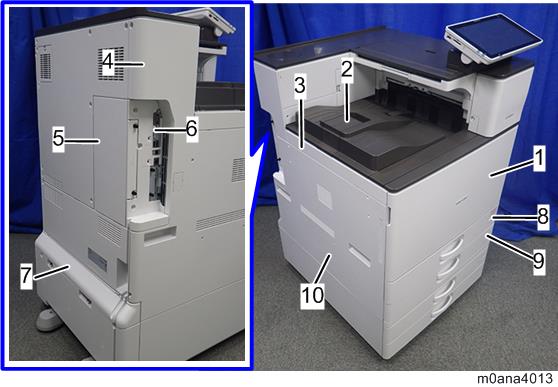

Order to remove

  1. Front cover
  2. Paper exit tray
  3. Left upper cover
  4. Left rear cover
  5. Rear left cover
  6. Controller cover
  7. Rear lower gap cover
  8. 1st paper feed tray
  9. 2nd paper feed tray
  10. Left cover
