The duplex unit performs interleave to reduce the overall duplex printing time.
Paper exit from machine
Length | No. of interleaves |
|---|---|
Less than 216 mm | 3 |
216-432 mm | 2 |
When bypass/duplexing (regardless of paper sizes) | 1 |
1-bin tray exit from machine
Length | No. of interleaves |
|---|---|
Less than 216 mm | 2 |
216-432 mm | 1 |

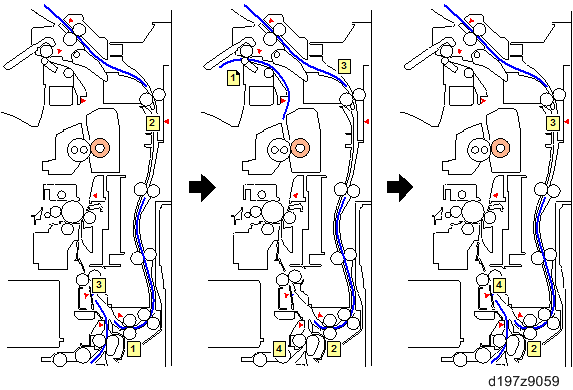

- 3 sheet interleave
Back side of 1st sheet -> Back side of 2nd sheet -> Back side of 3rd sheet -> Front side of 1st sheet -> Back side of 4th sheet -> Front side of 2nd sheet - 2 sheet leave
Back side of 1st sheet -> Back side of 2nd sheet -> Front side of 1st sheet -> Back side of 3rd sheet -> Front side of 2nd sheet
