- Remove the rear left cover. (Rear Left Cover)
- Remove the rear cover. (Rear Cover)
- Remove the rear lower gap cover. (Rear Lower Gap Cover)

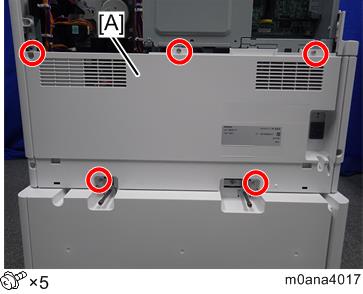

- Remove the rear lower cover [A].
