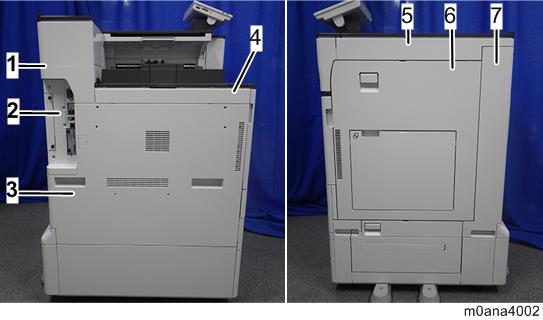

No. | Cover name |
|---|
1 | Left rear cover |
2 | Controller cover |
3 | Left cover |
4 | Left upper cover |
5 | Right upper cover |
6 | Right door |
7 | Right rear cover |
