- Remove the rear left cover. (Rear Left Cover)
- Remove the rear cover. (Rear Cover)

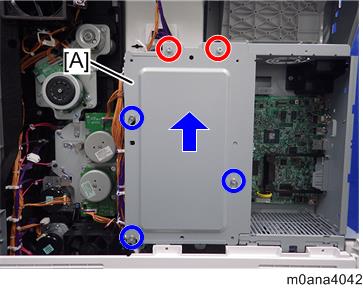

- Remove the controller box cover [A].
Red Circle: Remove, Blue Circle: Loosen
