• Each part enclosed by a blue circle has a tab. Be careful not to damage it when attaching and detaching.

  1. Open the front cover. (Front Cover)
  2. Remove the paper exit tray. (Paper Exit Tray)

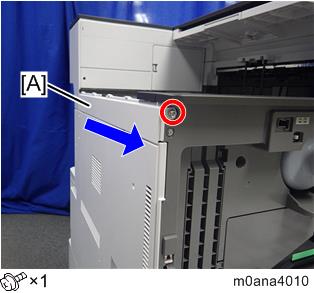

  3. Remove the left upper cover [A].

    • Slide the cover in the direction of the arrow.
