The transfer roller unit has a new unit detection mechanism, so it is not necessary to set SPs (New Unit Detection) when replacing an old transfer roller unit.

  1. Open the right cover.

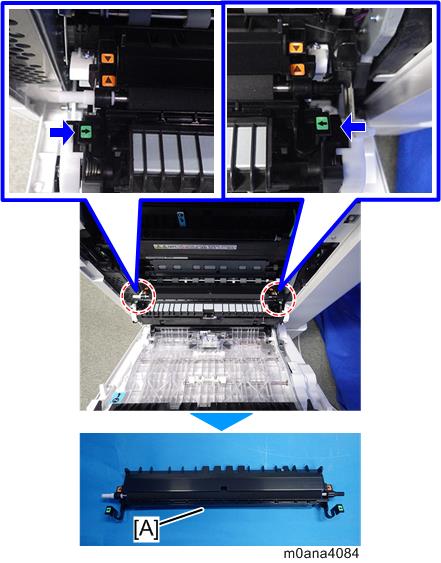

  2. Open the transfer unit [A].
  3. Release the right and left locks, and remove the transfer roller unit [A].
