1. Remove the fusing unit. (Fusing Unit)
  2. Remove the fusing upper cover. (Fusing Upper Cover)

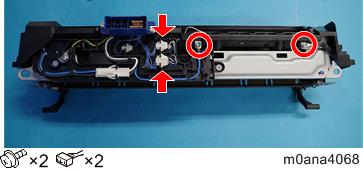

  3. Remove the screws and the connectors.

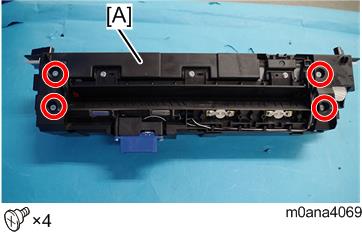

  4. Remove the fusing lower cover [A].

  • You must route the harnesses for the pressure roller temperature sensor and the fusing roller temperature sensor correctly when reassembling the fusing unit. See the notes when reassembling the fusing unit. (Notes When Reassembling the Fusing Unit)
