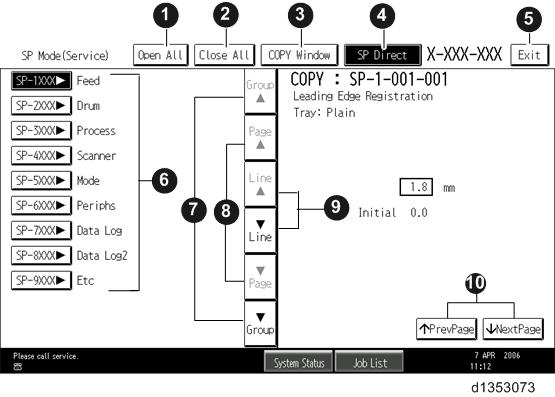

Here is a short summary of the touch-panel buttons.
1 | Opens all SP groups and sublevels. |
2 | Closes all open groups and sublevels and restores the initial SP mode display. |
3 | Opens the copier screen (copy mode) so you can make test copies. Press SP Mode (highlighted) in the copier screen to return to the SP mode screen, |
4 | If you know the SP number, enter the SP code directly by using the number keys and then pressing [#]. The required SP Mode number will be highlighted when pressing [#]. If not, just press the required SP Mode number.) |
5 | Press two times to leave the SP mode and return to the copier screen to resume normal operation. |
6 | Press any Class 1 number to open a list of Class 2 SP modes. |
7 | Press to scroll to the previous or next group. |
8 | Press to scroll to the previous or next display in segments the size of the screen display (page). |
9 | Press to scroll to the previous or next line (line by line). |
10 | Press to move the highlight on the left to the previous or next selection in the list. |
