Replacement and Adjustment
SPDF
DFRB
Remove the SPDF rear cover. (
SPDF Rear Cover
)

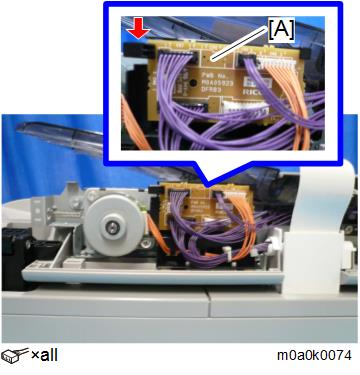

Remove the DFRB [A].
