1. Remove the SPDF and scanner unit. (Scanner Unit (with SPDF))

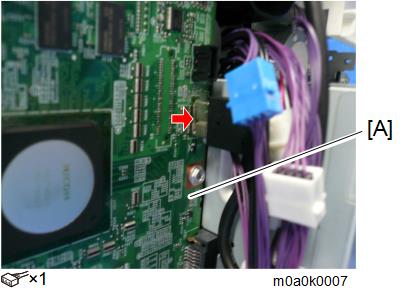

  2. Disconnect the connector on the BiCU [A].
  3. Remove the operation panel [A].

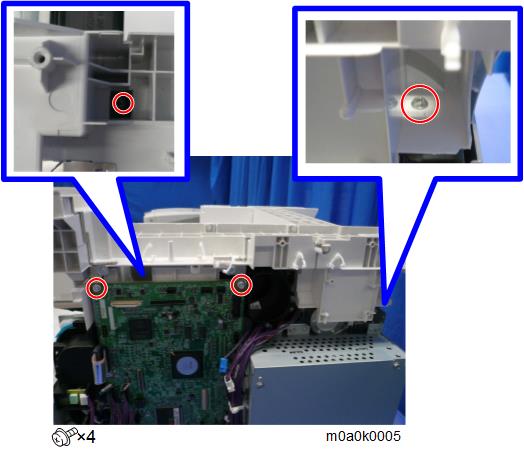

  4. Remove the screws on the left side of the upper cover [A].

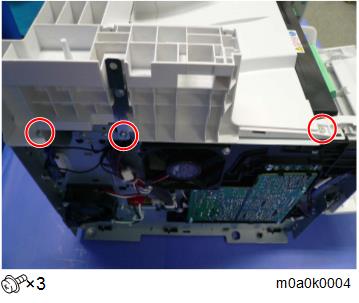

  5. Remove the screws on the right side of the upper cover [A].
  6. Remove the upper cover [A].
