Replacement and Adjustment
Drive Units
Duplex Exit Motor
Remove the upper cover. (
Upper Cover
)

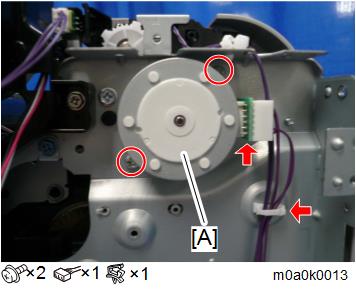

Remove the duplex exit motor [A].
