Replacement and Adjustment
Electrical Components
Temperature/Humidity Sensor
Remove the right cover. (
Right Cover
)

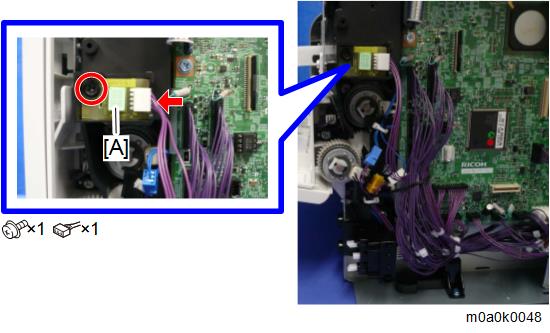

Remove the temperature/humidity sensor [A].
