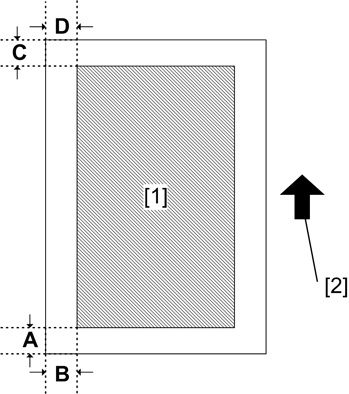

• Adjust the blank margin width only if it cannot be adjusted by registration (leading edge/side-to-side). First adjust C and D; then A and B.

  • [1]: Print area
  • [2]: Paper feed direction
  1. Enter the SP mode, and then print the test pattern (17: Trim Area ) with SP2-109-001.
  2. Adjust the blank margin width of the image with SP2-103-(001-004).
    • Leading edge: 2.7 to 9.9 mm (Default: 3.0 mm)
    • Trailing edge: 0.0 to 9.9 mm (Default: 2.0 mm)
    • Left: 0.0 to 9.9 mm (Default: 2.0 mm)
    • Right: 0.0 to 9.9 mm (Default: 2.0 mm)
