Replacement and Adjustment
Paper Feed
Paper End Sensor
Remove the bypass feed unit. (
Bypass Feed Unit
)

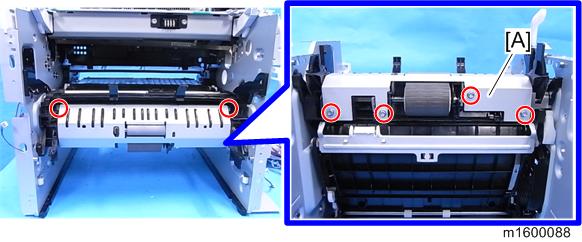

Remove the bracket [A]. (
x6)
Remove the paper end sensor [A]. (
x1, Hook)
