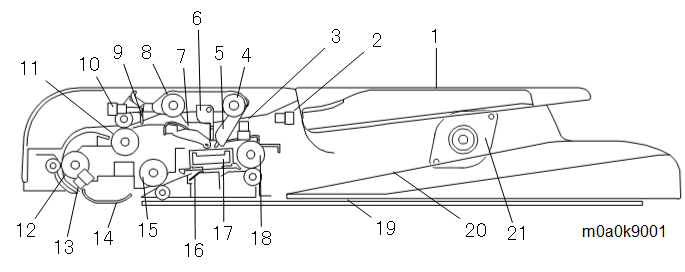

Name | Name | ||
|---|---|---|---|
1 | Original tray | 12 | Pre-scanning roller (front side) |
2 | SPDF upper cover sensor | 13 | SPDF transport sensor |
3 | SPDF original set sensor | 14 | Scanning guide plate (front side) |
4 | Pick-up roller | 15 | Pre-scanning roller (rear side) |
5 | Original set sensor actuator | 16 | Scanning guide plate (rear side) |
6 | Stopper | 17 | SPDF CIS |
7 | Friction pad | 18 | Exit roller |
8 | Feed roller | 19 | Platen |
9 | Feed sensor actuator | 20 | Original exit tray |
| 10 | SPDF feed sensor | 21 | SPDF motor |
| 11 | SPDF entrance roller |

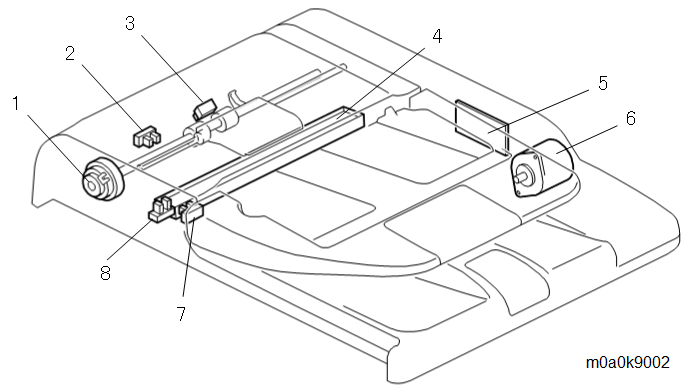

Name | Name | ||
|---|---|---|---|
1 | SPDF feed roller clutch | 5 | DFRB |
2 | SPDF feed sensor | 6 | SPDF motor |
3 | SPDF Transport sensor | 7 | SPDF upper cover sensor |
4 | SPDF CIS | 8 | SPDF original set sensor |
