Installation
Main Machine Installation
Installation Procedure
Connecting the Power Cord

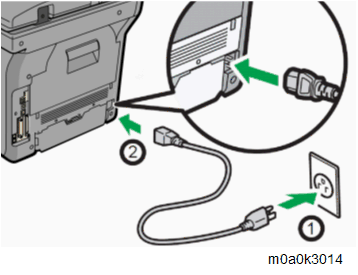

Plug the power cord into the rear of the machine.

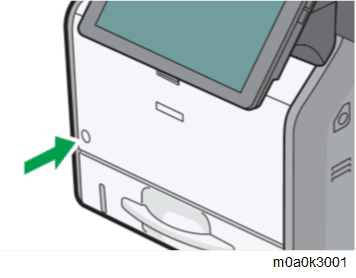

Push the main power switch.
