"Move Exec" (SP5-873-001) lets you move application programs from the original SD card to another SD card.

  • Do not turn ON the write protect switch of the system SD card or application SD card on the machine. If the write protect switch is ON, a download error (e.g. Error Code 44) will occur during a firmware upgrade or application merge.

  1. Turn the main power OFF.
  2. Remove the SD card slot cover [A].

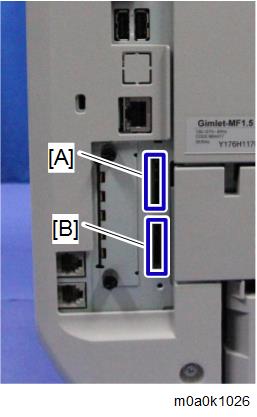

  3. Make sure that a target SD card is in SD Card Slot 1 [A]. The application program is moved to this SD card.
  4. Insert the source SD card with the application program into SD Card Slot 2 [B].
    The application program is copied from this source SD card.
  5. Turn the main power ON.
  6. Enter the SP mode.
  7. Select SP5-873-001 "Move Exec".
  8. Follow the messages shown on the operation panel.
  9. Turn the main power OFF.
  10. Remove the source SD card from SD Card Slot 2 [B].
  11. Attach the SD card slot cover.
  12. Turn the main power ON.
  13. Check that the application programs run normally.
