1. Remove the paper cassette
  2. Open the bypass tray [A].

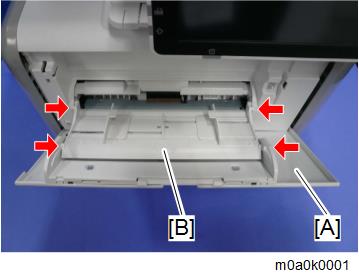

  3. Release the four hinges indicated below to detach the paper guide plate [B].

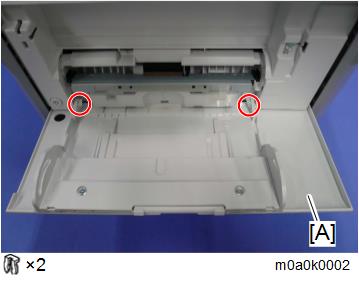

  4. Remove the clip rings on the bypass tray [A].

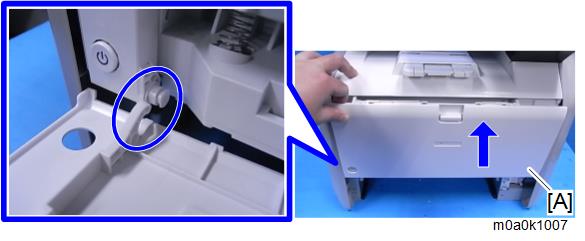

  5. Release both end hinges of the bypass tray [A] to detach it.

    • To remove the bypass tray, lift the left hinge first to release while lifting the bypass tray.
    • The left hinge is C-cut.

  6. Remove the screw on the front cover [A] in order to release the strap that attaches the front cover to the machine.(x1)

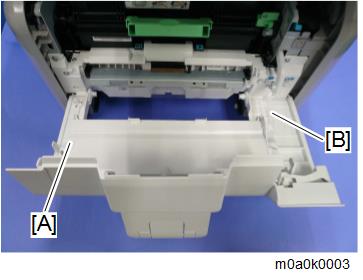

  7. Open the front cover [A] and release the strap [B].

  8. Release both side hinges to detach the front cover [A].

    • Release the left hinge [B] first.
