Detailed Descriptions
Image Fusing
Details

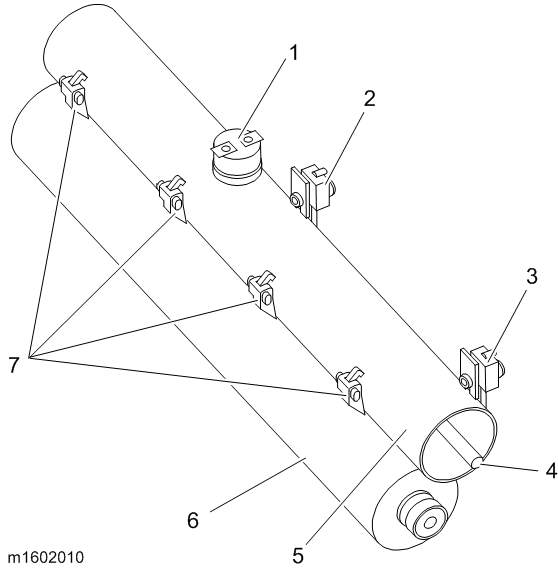

Parts Layout
Thermostat (185°C)
Thermistor (Center)
Thermistor (Edge)
Fusing Lamp
Hot roller
Pressure roller
Hot roller strippers
