1. Remove the left cover. (Left Cover)

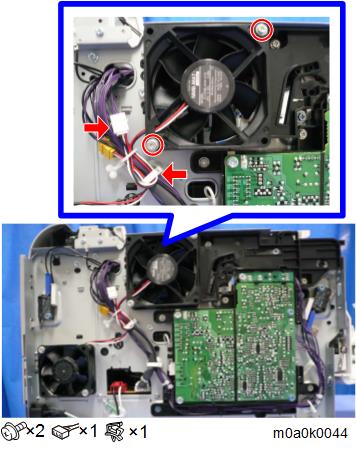

  2. Remove the fusing fan [A].

    • When you reattach the fusing fan, attach it correctly (as shown above, the face of the fan with the sticker is on the outside).
