Registration

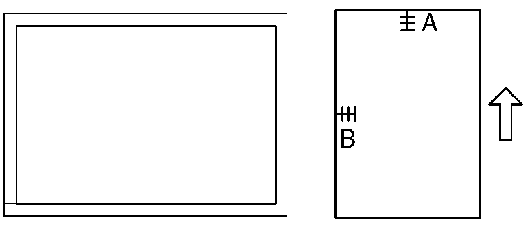

  • Use the above test charts to adjust these settings.

  1. Place the temporary test chart on the SPDF and make a copy from one of the paper feed trays.

  2. Check the registrations, and adjust as necessary with the appropriate SP modes, as follows.
    Allowable registration errors: 4.2 ± 2 mm (Leading edge) / 2 ± 1 mm (Left, right)

    SP No.

    Name

    Range

    SP6-006-001

    Side-to-Side Regist: Front

    ± 2.0 mm

    SP6-006-003

    Leading Edge Regist: Front

    ± 5.0 mm

    SP6-006-007

    Rear Edge Erase

    ± 5.0 mm

Magnification
  1. Place the temporary test chart on the SPDF and make a copy from one of the paper feed trays.

  2. Check the magnification and adjust it with SP6-017-001 if necessary.

    SP No.

    Name

    Range

    SP6-017-001

    SPDF Adjustment Magnification

    ± 5.0 %
