1. Remove the drive unit. (Drive Unit)
  2. Remove the gear unit. (Gear Unit)
  3. Remove the paper size switch (Paper Size Switch)
  4. Remove the registration sensor. (Registration Sensor)
  5. Remove the HVPS with bracket. (HVPS with Bracket)

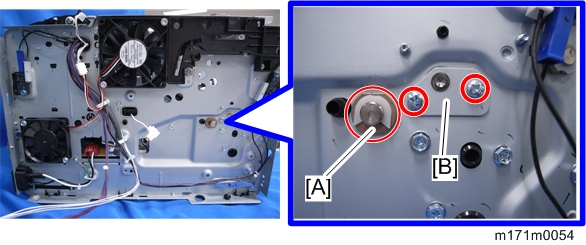

  6. Release the bearing [A] ×1 at the left end of the registration roller (drive) and fixing plate [B] ×1. (x1, ×2)

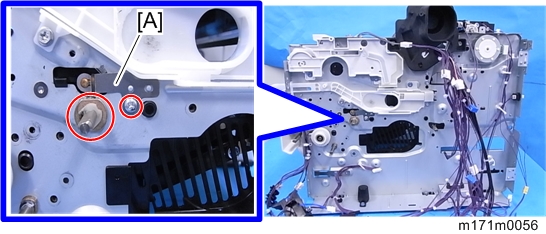

  7. Release the bearing at the right end of the registration roller (drive), and remove the grounding plate [A]. ( x 1, x 1)

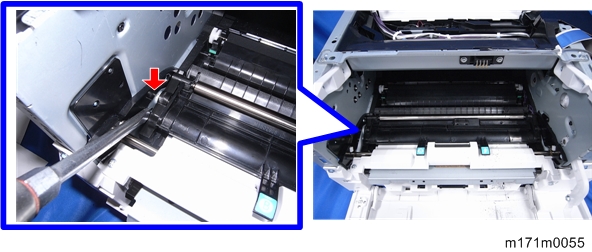

  8. Insert a flathead screwdriver into the gap on the left of the registration roller guide to release the protruding part.

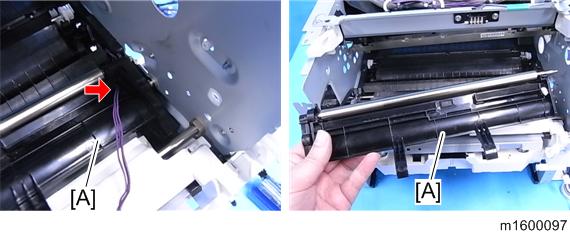

  9. Release the harness from the guide [A] to detach the guide [A] with the registration roller (driven).

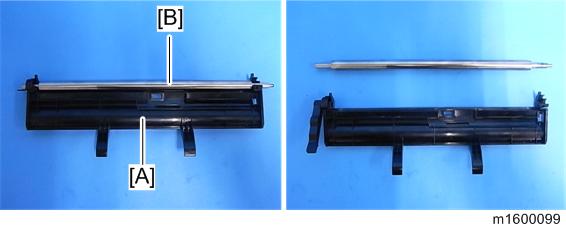

  10. Detach the registration roller (driven) [B] from the guide [A].
