Replacement and Adjustment
Electrical Components
Speaker
Remove the right cover (
Right Cover
)
Remove the controller box cover [A]. (
FCU Board
)

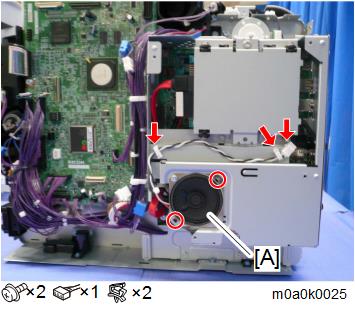

Remove the speaker [A].
Expand All
