Replacement and Adjustment
PCDU
PCDU

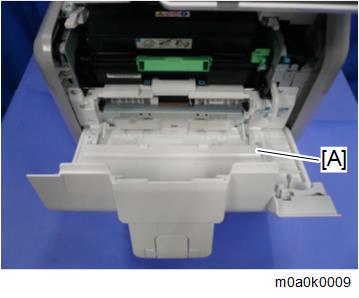

Open the front cover [A].

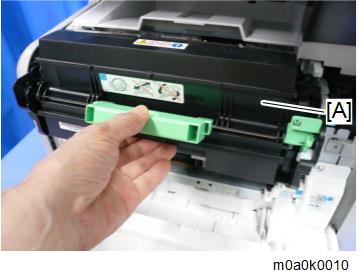

Hold the grip to pull the PCDU [A] out.
