Replacement and Adjustment
SPDF
SPDF Feed Clutch
Remove the front cover. (
SPDF Front Cover
)

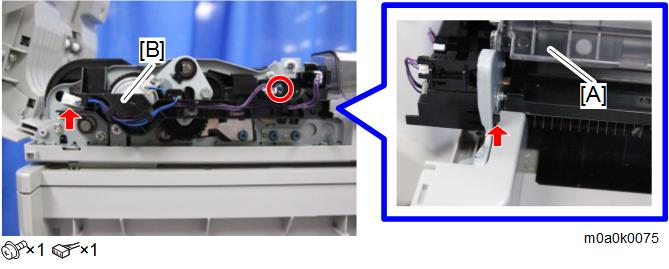

Release the hook with the original tray [A] swinging up and remove the harness guide [B].

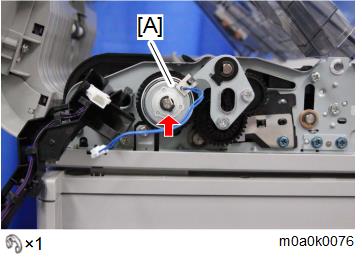

Remove the SPDF feed clutch [A].
