Replacement and Adjustment
Paper Transport
Duplex Exit Sensor
Remove the upper cover. (
Upper Cover
)

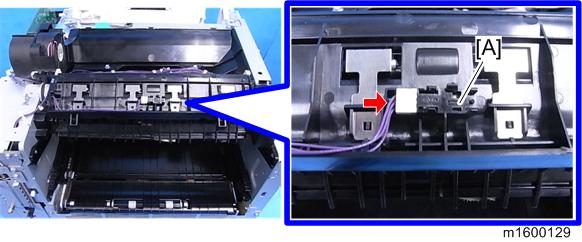

Remove the duplex exit sensor [A]. (
x1, Hook)
