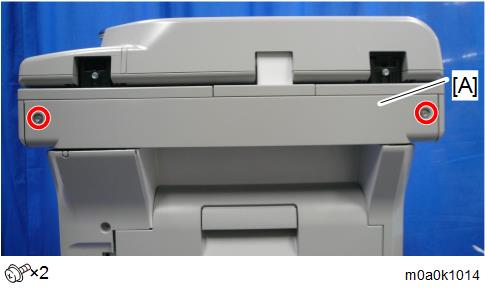

1. Remove the scanner rear cover [A].

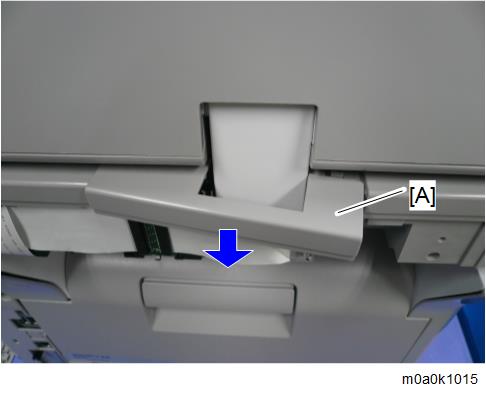

  2. Remove the scanner rear upper cover [A].

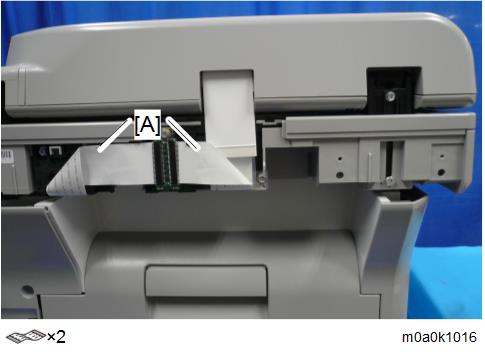

  3. Disconnect the FFCs [A].

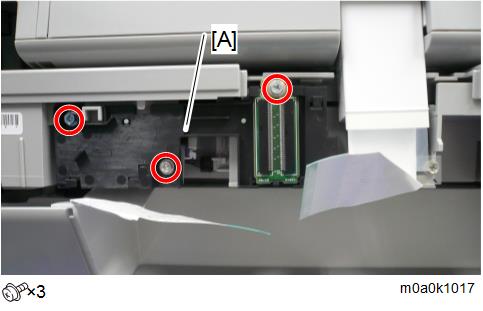

  4. Remove the bracket [A].

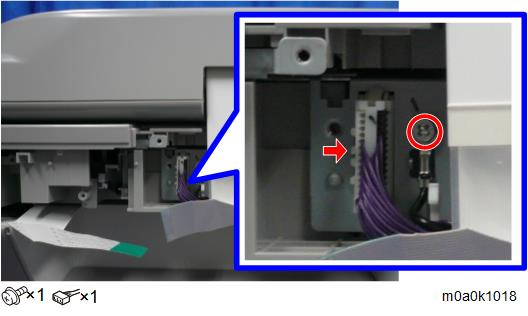

  5. Remove the screw and disconnect the connector.

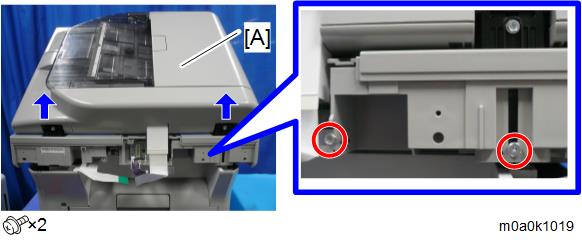

  6. Lift the SPDF [A] to remove it.

    • The joint parts of the SPDF have tabs that latch onto the scanner. You need to push the SPDF forward fully while removing it, in order to detach the SPDF from the tabs.
