Replacement and Adjustment
Drive Units
Main Motor
Remove the right cover. (
Right Cover
)
Remove the drive unit. (
Drive Unit
)

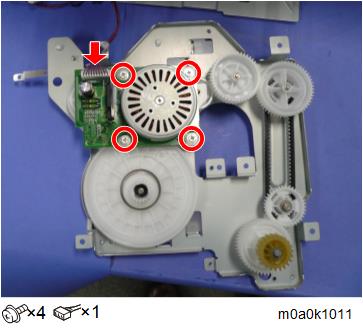

Remove the main motor [A].
